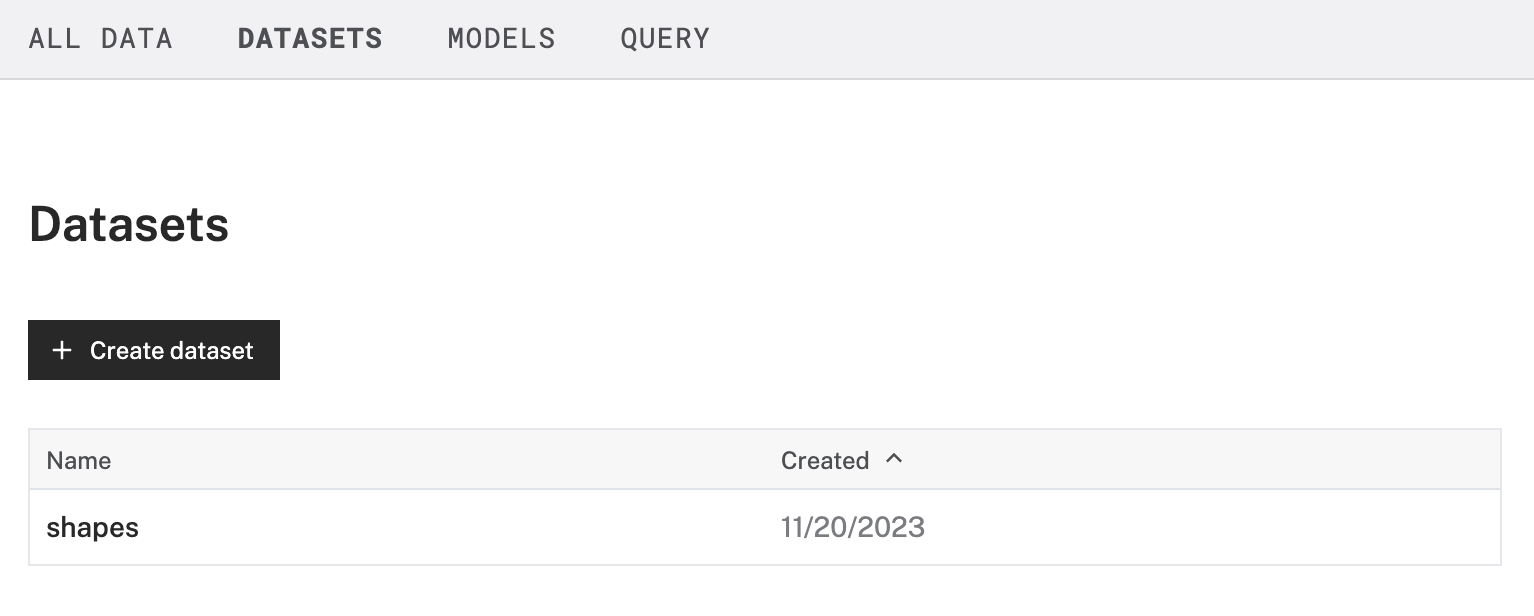

Create a training dataset

Run the following Viam CLI command to create a dataset, replacing the <org-id> and <name> placeholders with your organization ID and a unique name for the dataset:

viam dataset create --org-id=<org-id> --name=<name>

To create a dataset, pass a unique dataset name and organization ID to data_client.create_dataset:

import asyncio

from viam.rpc.dial import DialOptions, Credentials
from viam.app.viam_client import ViamClient

# Configuration constants – replace with your actual values
API_KEY = ""  # API key, find or create in your organization settings
API_KEY_ID = ""  # API key ID, find or create in your organization settings
ORG_ID = ""  # your organization ID, find in your organization settings
DATASET_NAME = ""  # a unique, new name for the dataset you want to create


async def connect() -> ViamClient:
    """Establish a connection to the Viam client using API credentials."""
    dial_options = DialOptions(
        credentials=Credentials(
            type="api-key",
            payload=API_KEY,
        ),
        auth_entity=API_KEY_ID
    )
    return await ViamClient.create_from_dial_options(dial_options)


async def main() -> int:
    viam_client = await connect()
    data_client = viam_client.data_client

    print("Creating dataset...")
    try:
        dataset_id = await data_client.create_dataset(
            name=DATASET_NAME,
            organization_id=ORG_ID,
        )
        print(f"Created dataset: {dataset_id}")
    except Exception as e:
        print("Error creating dataset. It may already exist.")
        print("See: https://app.viam.com/data/datasets")
        print(f"Exception: {e}")
        return 1

    viam_client.close()
    return 0

if __name__ == "__main__":
    asyncio.run(main())

To create a dataset, pass a unique dataset name and organization ID to DataClient.CreateDataset:

package main

import (
	"context"
	"fmt"
	"os"

	"go.viam.com/rdk/app"
	"go.viam.com/rdk/logging"
)

func main() {
	apiKey := ""
	apiKeyID := ""
	orgID := ""
	datasetName := ""

	logger := logging.NewDebugLogger("client")
	ctx := context.Background()
	viamClient, err := app.CreateViamClientWithAPIKey(
		ctx, app.Options{}, apiKey, apiKeyID, logger)
	if err != nil {
		logger.Fatal(err)
	}
	defer viamClient.Close()

	dataClient := viamClient.DataClient()

	fmt.Println("Creating dataset...")
	datasetID, err := dataClient.CreateDataset(ctx, datasetName, orgID)
	if err != nil {
		fmt.Println("Error creating dataset. It may already exist.")
		fmt.Printf("Exception: %v\n", err)
		return
	}
	fmt.Printf("Created dataset: %s\n", datasetID)

}

To create a dataset, pass a unique dataset name and organization ID to dataClient.createDataset:

import { createViamClient } from "@viamrobotics/sdk";

// Configuration constants – replace with your actual values
let API_KEY = "";  // API key, find or create in your organization settings
let API_KEY_ID = "";  // API key ID, find or create in your organization settings
let ORG_ID = "";  // your organization ID, find in your organization settings
let DATASET_NAME = "";  // a unique, new name for the dataset you want to create


async function connect(): Promise<any> {
    // Establish a connection to the Viam client using API credentials
    return await createViamClient({
        credentials: {
            type: "api-key",
            authEntity: API_KEY_ID,
            payload: API_KEY,
        },
    });
}

async function main(): Promise<number> {
    const viamClient = await connect();
    const dataClient = viamClient.dataClient;

    console.log("Creating dataset...");
    try {
        const datasetId = await dataClient.createDataset(
            DATASET_NAME,
            ORG_ID
        );
        console.log(`Created dataset: ${datasetId}`);
    } catch (error) {
        console.log("Error creating dataset. It may already exist.");
        console.log("See: https://app.viam.com/data/datasets");
        console.log(`Exception: ${error}`);
        return 1;
    }

    return 0;
}

// Run the script
main().catch((error) => {
    console.error("Script failed:", error);
    process.exit(1);
});

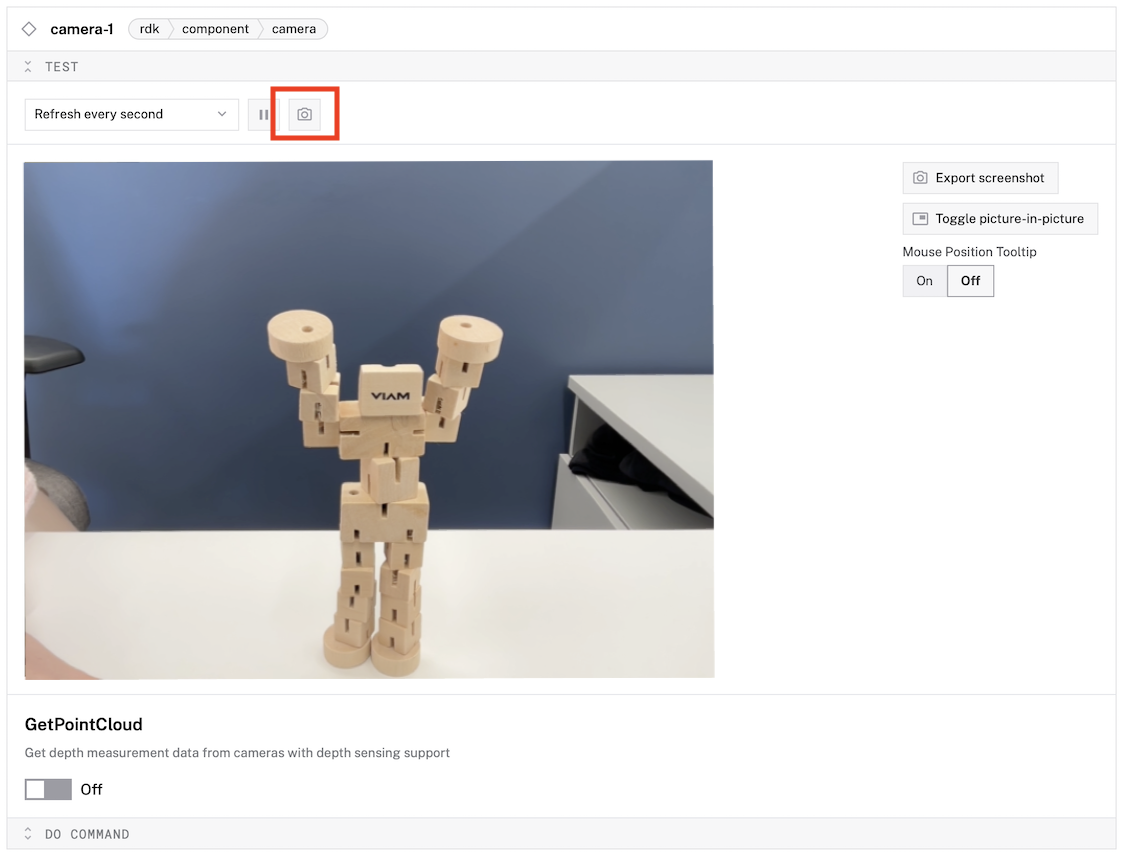

To capture an image and upload it to Viam, first get an image from your camera through your machine. Pass that image and an appropriate set of metadata to data_client.binary_data_capture_upload:

import asyncio

from datetime import datetime
from viam.rpc.dial import DialOptions, Credentials
from viam.app.viam_client import ViamClient
from viam.components.camera import Camera
from viam.robot.client import RobotClient

# Configuration constants – replace with your actual values
API_KEY = ""  # API key, find or create in your organization settings
API_KEY_ID = ""  # API key ID, find or create in your organization settings
MACHINE_ADDRESS = ""  # the address of the machine you want to capture images from
CAMERA_NAME = ""  # the name of the camera you want to capture images from
PART_ID = ""  # the part ID of the machine part that captured the images

async def connect() -> ViamClient:
    """Establish a connection to the Viam client using API credentials."""
    dial_options = DialOptions(
        credentials=Credentials(
            type="api-key",
            payload=API_KEY,
        ),
        auth_entity=API_KEY_ID
    )
    return await ViamClient.create_from_dial_options(dial_options)

async def connect_machine() -> RobotClient:
    """Establish a connection to the robot using the robot address."""
    machine_opts = RobotClient.Options.with_api_key(
        api_key=API_KEY,
        api_key_id=API_KEY_ID
    )
    return await RobotClient.at_address(MACHINE_ADDRESS, machine_opts)

async def main() -> int:
    viam_client = await connect()
    data_client = viam_client.data_client
    machine_client = await connect_machine()

    camera = Camera.from_robot(machine_client, CAMERA_NAME)

    # Capture image
    image_frame = await camera.get_image()

    # Upload image
    file_id = await data_client.binary_data_capture_upload(
        part_id=PART_ID,
        component_type="camera",
        component_name=CAMERA_NAME,
        method_name="GetImage",
        data_request_times=[datetime.utcnow(), datetime.utcnow()],
        file_extension=".jpg",
        binary_data=image_frame.data
    )
    print(f"Uploaded image: {file_id}")

    viam_client.close()
    await machine_client.close()

    return 0

if __name__ == "__main__":
    asyncio.run(main())

To capture an image and upload it to Viam, first get an image from your camera through your machine. Pass that image and an appropriate set of metadata to DataClient.BinaryDataCaptureUpload:

package main

import (
	"context"
	"fmt"
	"time"

	"go.viam.com/rdk/app"
	"go.viam.com/rdk/components/camera"
	"go.viam.com/rdk/logging"
	"go.viam.com/rdk/robot/client"
	"go.viam.com/rdk/utils"
	"go.viam.com/utils/rpc"
)


func main() {
	apiKey := ""
	apiKeyID := ""
	machineAddress := ""
	cameraName := ""
	partID := ""


	logger := logging.NewDebugLogger("client")
	ctx := context.Background()

	viamClient, err := app.CreateViamClientWithAPIKey(
		ctx, app.Options{}, apiKey, apiKeyID, logger)
	if err != nil {
		logger.Fatal(err)
	}
	defer viamClient.Close()

	machine, err := client.New(
		context.Background(),
		machineAddress,
		logger,
		client.WithDialOptions(rpc.WithEntityCredentials(
			apiKeyID,
			rpc.Credentials{
				Type:    rpc.CredentialsTypeAPIKey,
				Payload: apiKey,
			})),
	)
	if err != nil {
		logger.Fatal(err)
	}

	// Capture image from camera
	cam, err := camera.FromRobot(machine, cameraName)
	if err != nil {
		logger.Fatal(err)
	}

	image, _, err := cam.Image(ctx, utils.MimeTypeJPEG, nil)
	if err != nil {
		logger.Fatal(err)
	}

	// Upload image to Viam
	dataClient := viamClient.DataClient()

	binaryDataID, err := dataClient.BinaryDataCaptureUpload(
		ctx,
		image,
		partID,
		"camera",
		cameraName,
		"GetImage",
		".jpg",
		&app.BinaryDataCaptureUploadOptions{
			DataRequestTimes: &[2]time.Time{time.Now(), time.Now()},
		},
	)
	if err != nil {
		logger.Fatal(err)
	}

	fmt.Printf("Uploaded image: %s\n", binaryDataID)

}

To capture an image and upload it to Viam, first get an image from your camera through your machine. Pass that image and an appropriate set of metadata to dataClient.binaryDataCaptureUpload:

import { createViamClient, createRobotClient, RobotClient, CameraClient } from "@viamrobotics/sdk";

// Configuration constants – replace with your actual values
let API_KEY = "";  // API key, find or create in your organization settings
let API_KEY_ID = "";  // API key ID, find or create in your organization settings
let MACHINE_ADDRESS = "";  // the address of the machine you want to capture images from
let CAMERA_NAME = "";  // the name of the camera you want to capture images from
let PART_ID = "";  // the part ID of the machine part that captured the images


async function connect(): Promise<any> {
    // Establish a connection to the Viam client using API credentials
    return await createViamClient({
        credentials: {
            type: "api-key",
            authEntity: API_KEY_ID,
            payload: API_KEY,
        },
    });
}

async function connectMachine(): Promise<RobotClient> {
    // Establish a connection to the robot using the robot address
    return await createRobotClient({
        host: MACHINE_ADDRESS,
        credentials: {
          type: 'api-key',
          payload: API_KEY,
          authEntity: API_KEY_ID,
        },
        signalingAddress: 'https://app.viam.com:443',
      });
}

async function main(): Promise<number> {
    const viamClient = await connect();
    const dataClient = viamClient.dataClient;
    const machine = await connectMachine();
    const camera = new CameraClient(machine, CAMERA_NAME);

    // Capture image
    const imageFrame = await camera.getImage();

    // Upload image
    const fileId = await dataClient.binaryDataCaptureUpload(
        imageFrame,
        PART_ID,
        "camera",
        CAMERA_NAME,
        "GetImage",
        ".jpg",
        [new Date(), new Date()]
    );
    console.log(`Uploaded image: ${fileId}`);

    return 0;
}


main().catch((error) => {
    console.error("Script failed:", error);
    process.exit(1);
});

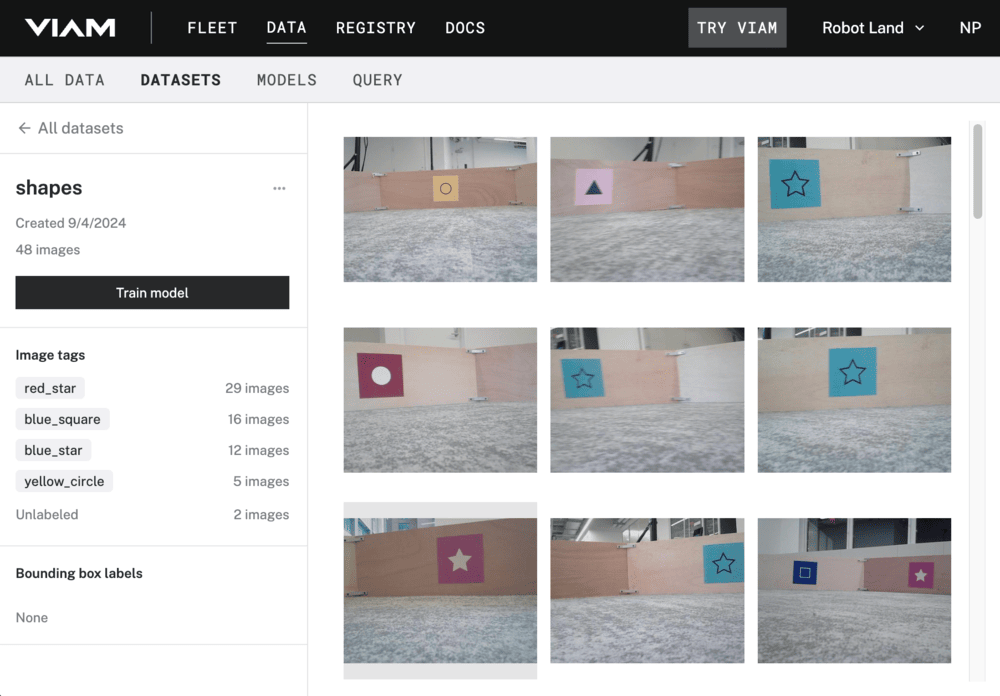

Use the Viam CLI to filter images by label and add the filtered images to a dataset:

1. Use the dataset ID output by the dataset creation command or run the following command to get a list of dataset names and corresponding IDs:

   viam dataset list


2. Run the following command to add all images labeled with the specified tags to the dataset, replacing the <dataset-id> placeholder with the dataset ID:

   viam dataset data add filter --dataset-id=<dataset-id> --tags=red_star,blue_square


To add an image to a dataset, find the binary data ID for the image and the dataset ID. You can retrieve the binary data IDs from the DATA tab. Click on an image and copy the binary data ID from the DETAILS section.

You can retrieve the dataset ID from the DATASETS tab. Click on the dataset. On the dataset page, click the … menu next to the dataset name, then click Copy dataset ID.

Pass both IDs to data_client.add_binary_data_to_dataset_by_ids:

import asyncio

from viam.rpc.dial import DialOptions, Credentials
from viam.app.viam_client import ViamClient

# Configuration constants – replace with your actual values
API_KEY = ""  # API key, find or create in your organization settings
API_KEY_ID = ""  # API key ID, find or create in your organization settings
DATASET_ID = ""  # the ID of the dataset you want to add the image to
BINARY_DATA_ID = ""  # the ID of the image you want to add to the dataset


async def connect() -> ViamClient:
    """Establish a connection to the Viam client using API credentials."""
    dial_options = DialOptions(
        credentials=Credentials(
            type="api-key",
            payload=API_KEY,
        ),
        auth_entity=API_KEY_ID
    )
    return await ViamClient.create_from_dial_options(dial_options)


async def main() -> int:
    viam_client = await connect()
    data_client = viam_client.data_client

    print("Adding image to dataset...")
    await data_client.add_binary_data_to_dataset_by_ids(
        binary_ids=[BINARY_DATA_ID],
        dataset_id=DATASET_ID
    )

    viam_client.close()
    return 0

if __name__ == "__main__":
    asyncio.run(main())

To add an image to a dataset, find the binary data ID for the image and the dataset ID. You can retrieve the binary data IDs from the DATA tab. Click on an image and copy the binary data ID from the DETAILS section.

You can retrieve the dataset ID from the DATASETS tab. Click on the dataset. On the dataset page, click the … menu next to the dataset name, then click Copy dataset ID.

Pass both IDs to DataClient.AddBinaryDataToDatasetByIDs:

package main

import (
	"context"
	"fmt"

	"go.viam.com/rdk/app"
	"go.viam.com/rdk/logging"
)

func main() {
	apiKey := ""
	apiKeyID := ""
	datasetID := ""
	binaryDataID := ""

	logger := logging.NewDebugLogger("client")
	ctx := context.Background()
	viamClient, err := app.CreateViamClientWithAPIKey(
		ctx, app.Options{}, apiKey, apiKeyID, logger)
	if err != nil {
		logger.Fatal(err)
	}
	defer viamClient.Close()

	dataClient := viamClient.DataClient()


	fmt.Println("Adding image to dataset...")
	err = dataClient.AddBinaryDataToDatasetByIDs(
		ctx,
		[]string{binaryDataID},
		datasetID,
	)
	if err != nil {
		fmt.Println("Error adding image to dataset.")
		fmt.Printf("Exception: %v\n", err)
		return
	}
	fmt.Println("Image added to dataset successfully")
}

To add an image to a dataset, find the binary data ID for the image and the dataset ID. You can retrieve the binary data IDs from the DATA tab. Click on an image and copy the binary data ID from the DETAILS section.

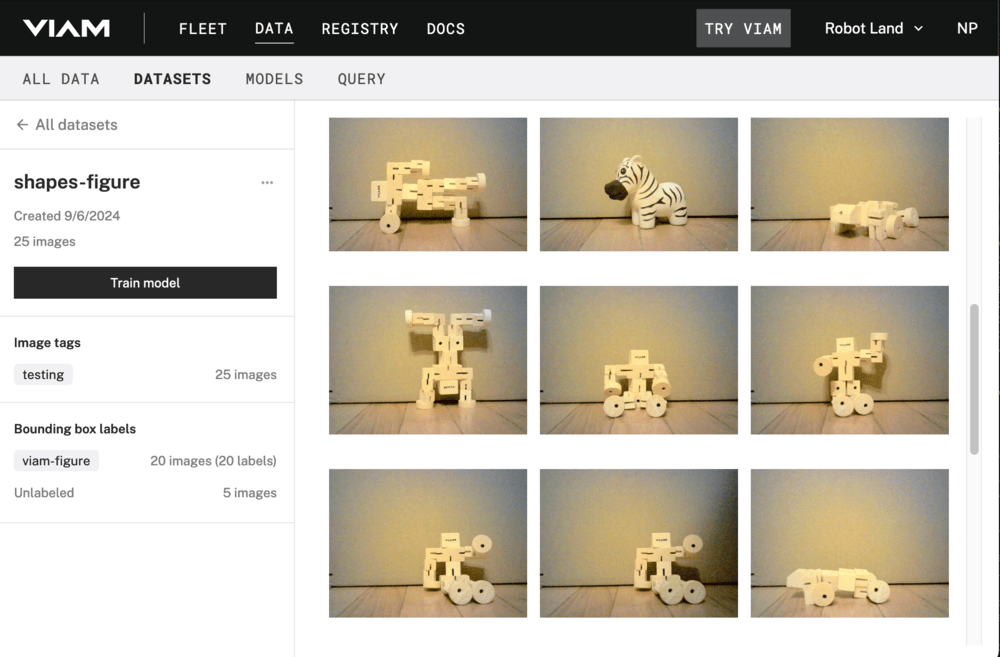

You can retrieve the dataset ID from the DATASETS tab. Click on the dataset. On the dataset page, click the … menu next to the dataset name, then click Copy dataset ID.

Pass both IDs to dataClient.addBinaryDataToDatasetByIDs:

import { createViamClient } from "@viamrobotics/sdk";

// Configuration constants – replace with your actual values
let API_KEY = "";  // API key, find or create in your organization settings
let API_KEY_ID = "";  // API key ID, find or create in your organization settings
let DATASET_ID = "";  // the ID of the dataset you want to add the image to
let BINARY_DATA_ID = "";  // the ID of the image you want to add to the dataset

async function connect(): Promise<any> {
    // Establish a connection to the Viam client using API credentials
    return await createViamClient({
        credentials: {
            type: "api-key",
            authEntity: API_KEY_ID,
            payload: API_KEY,
        },
    });
}

async function main(): Promise<number> {
    const viamClient = await connect();
    const dataClient = viamClient.dataClient;


    console.log("Adding image to dataset...");
    await dataClient.addBinaryDataToDatasetByIds(
        [BINARY_DATA_ID],
        DATASET_ID
    );

    return 0;
}

// Run the script
main().catch((error) => {
    console.error("Script failed:", error);
    process.exit(1);
});

The following script adds all images captured from a certain machine to a new dataset:

import asyncio
from typing import List, Optional
from viam.utils import create_filter

from viam.rpc.dial import DialOptions, Credentials
from viam.app.viam_client import ViamClient

# Configuration constants – replace with your actual values
API_KEY = ""  # API key, find or create in your organization settings
API_KEY_ID = ""  # API key ID, find or create in your organization settings
ORG_ID = ""  # your organization ID, find in your organization settings
PART_ID = ""  # the part ID of the machine part that captured the images
DATASET_ID = ""  # the ID of the dataset you want to add the image to
MAX_MATCHES = 50  # the maximum number of binary data objects to fetch


async def connect() -> ViamClient:
    """Establish a connection to the Viam client using API credentials."""
    dial_options = DialOptions(
        credentials=Credentials(
            type="api-key",
            payload=API_KEY,
        ),
        auth_entity=API_KEY_ID
    )
    return await ViamClient.create_from_dial_options(dial_options)

async def fetch_binary_data_ids(data_client, part_id: str) -> List[str]:
    """Fetch binary data metadata and return a list of BinaryData objects."""
    data_filter = create_filter(part_id=part_id)
    all_matches = []
    last: Optional[str] = None

    print("Getting data for part...")

    while len(all_matches) < MAX_MATCHES:
        print("Fetching more data...")
        data, _, last = await data_client.binary_data_by_filter(
            data_filter,
            limit=50,
            last=last,
            include_binary_data=False,
        )
        if not data:
            break
        all_matches.extend(data)

    return all_matches

async def main() -> int:
    viam_client = await connect()
    data_client = viam_client.data_client

    matching_data = await fetch_binary_data_ids(data_client, PART_ID)

    await data_client.add_binary_data_to_dataset_by_ids(
        binary_ids=[
            obj.metadata.binary_data_id for obj in matching_data
        ],
        dataset_id=DATASET_ID
    )

    print("Added files to dataset:")
    print(f"https://app.viam.com/data/datasets?id={DATASET_ID}")

    viam_client.close()
    return 0

if __name__ == "__main__":
    asyncio.run(main())

The following script adds all images captured from a certain machine to a new dataset:

package main

import (
	"context"
	"fmt"

	"go.viam.com/rdk/app"
	"go.viam.com/rdk/logging"
)


func fetchBinaryDataIDs(
	ctx context.Context,
	dataClient *app.DataClient,
	partID string,
	maxMatches int) ([]string, error) {
	filter := &app.Filter{
		PartID: partID,
		Interval: app.CaptureInterval{
			Start: time.Now().Add(-200 * time.Hour),
			End: time.Now(),
		},
	}

	var allMatches []string
	last := ""

	fmt.Println("Getting data for part...")

	for len(allMatches) < maxMatches {
		fmt.Println("Fetching more data...")

		resp, err := dataClient.BinaryDataByFilter(
			ctx, false, &app.DataByFilterOptions{
				Filter:            filter,
				Limit:             5,
				Last:              last,
				IncludeInternalData: false,
			},
		)
		if err != nil {
			return nil, fmt.Errorf("failed to fetch binary data: %w", err)
		}
		if len(resp.BinaryData) == 0 {
			break
		}
		for _, data := range resp.BinaryData {
			allMatches = append(allMatches, data.Metadata.BinaryDataID)
		}
		last = resp.Last
	}

	fmt.Println("All matches:")
	fmt.Println(allMatches)

	return allMatches, nil
}

func main() {
	apiKey := ""
	apiKeyID := ""
	partID := ""
	datasetID := ""
	maxMatches := 50

	logger := logging.NewDebugLogger("client")
	ctx := context.Background()
	viamClient, err := app.CreateViamClientWithAPIKey(
		ctx, app.Options{}, apiKey, apiKeyID, logger)
	if err != nil {
		logger.Fatal(err)
	}
	defer viamClient.Close()

	dataClient := viamClient.DataClient()


	fmt.Println("Fetching machine images...")
	binaryDataIDs, err := fetchBinaryDataIDs(ctx, dataClient, partID, maxMatches)
	if err != nil {
		fmt.Println("Error fetching machine images.")
		fmt.Printf("Exception: %v\n", err)
		return
	}
	fmt.Printf("Fetched %d machine images.\n", len(binaryDataIDs))

	fmt.Println("Adding machine images to dataset...")
	err = dataClient.AddBinaryDataToDatasetByIDs(
		ctx,
		binaryDataIDs,
		datasetID,
	)
	if err != nil {
		fmt.Println("Error adding machine images to dataset.")
		fmt.Printf("Exception: %v\n", err)
		return
	}
	fmt.Println("Machine images added to dataset successfully")
}

The following script adds all images captured from a certain machine to a new dataset:

import { createViamClient } from "@viamrobotics/sdk";

// Configuration constants – replace with your actual values
let API_KEY = "";  // API key, find or create in your organization settings
let API_KEY_ID = "";  // API key ID, find or create in your organization settings
let ORG_ID = "";  // your organization ID, find in your organization settings
let PART_ID = "";  // the part ID of the machine part that captured the images
let DATASET_ID = "";  // the ID of the dataset you want to add the image to
const MAX_MATCHES = 50;  // the maximum number of binary data objects to fetch

async function connect(): Promise<any> {
    // Establish a connection to the Viam client using API credentials
    return await createViamClient({
        credentials: {
            type: "api-key",
            authEntity: API_KEY_ID,
            payload: API_KEY,
        },
    });
}

async function fetchBinaryDataIds(dataClient: any, partId: string): Promise<string[]> {
    /** Fetch binary data metadata and return a list of BinaryData objects. */
    const dataFilter = { partId: partId };
    const allMatches: any[] = [];
    let last: string | undefined = undefined;

    console.log("Getting data for part...");

    while (allMatches.length < MAX_MATCHES) {
        console.log("Fetching more data...");
        const result = await dataClient.binaryDataByFilter(
            dataFilter,
            50,
            0,
            last,
            false  // includeBinary = false to allow limit > 1
        );

        const data = result.data || result;
        const newLast = result.last;

        if (!data || data.length === 0) {
            break;
        }
        allMatches.push(...data);
        last = newLast;
    }

    return allMatches;
}

async function main(): Promise<number> {
    const viamClient = await connect();
    const dataClient = viamClient.dataClient;

    const matchingData = await fetchBinaryDataIds(dataClient, PART_ID);
    console.log(`Found ${matchingData.length} matching data objects`);
    console.log(matchingData);

    await dataClient.addBinaryDataToDatasetByIds(
        matchingData.map(obj => obj.metadata.binaryDataId),
        DATASET_ID
    );

    console.log("Added files to dataset:");
    console.log(`https://app.viam.com/data/datasets?id=${DATASET_ID}`);

    return 0;
}

// Run the script
main().catch((error) => {
    console.error("Script failed:", error);
    process.exit(1);
});
